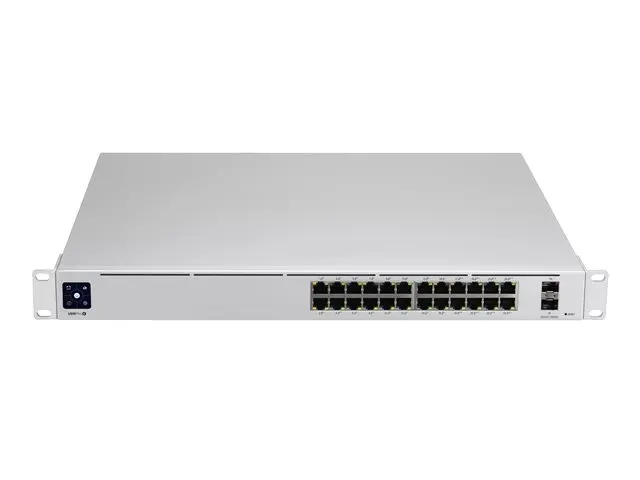

Ubiquiti UniFi Switch USW-Pro-24-POE

Características​

Características de hardware

• Hardware
  Management interface	Ethernet In-Band
  Networking interface	(24) GbE RJ45 ports (2) 1/10G SFP+ ports
  PoE interface	(16) PoE/PoE+ (Pins 1, 2+; 3, 6-) (8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
  Total non-blocking throughput	44 Gbps
  Switching capacity	88 Gbps
  Forwarding rate	65.472 Mpps
  Power method	(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A
  Power supply	AC/DC, internal, 450W
  Supported voltage range	100—240V AC
  Max. power consumption	50W (Excluding PoE output)
  Total available PoE	400W
  Max. PoE wattage per port by PSE	PoE+: 32W PoE++: 64W
  Voltage range PoE mode	PoE: 44—57V PoE+: 50—57V
  ESD/EMP protection	Air: ± 16kV, contact: ± 12kV

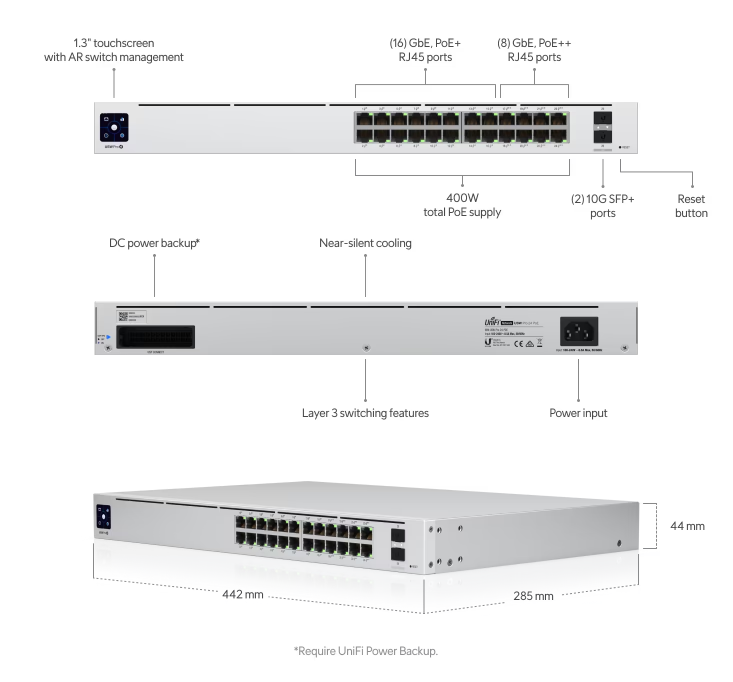

  LCM display	(1) 1.3" touchscreen
  Button	Factory reset

Características de Switching

• Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
  Layer 3 features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs

Que hay en la caja

Otras características
